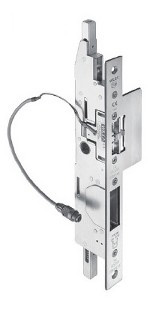

Wilka 663E Panic Keep with E-Opener

Wilka 663E Panic Keep with E-opener and long-lipped forend

Emergency exit lock caseĀ  with lipped forend for inactive leaf, with E-opener ET 40, incl. 10 m cable with plug-in contact for easy exchange, with lower drive lock to withstand forced opening via the locking bar, fully galvanized, forend stainless steel, M5 connector thread, bolt projection 20 mm, rotation angle of follower 40 degrees, can be used with fittings with angle of rotation 45 degrees.

Combination with door selector 661U is possible.

Function

When the E-opener is activated, the active leaf can be opened.

When actuating a door handle or a push bar/touch bar, the counter case drive bar rods are retracted.

The active door leaf lock latch and dead bolt are pushed back at the same time.

Special design

Download product PDF Enquire now
